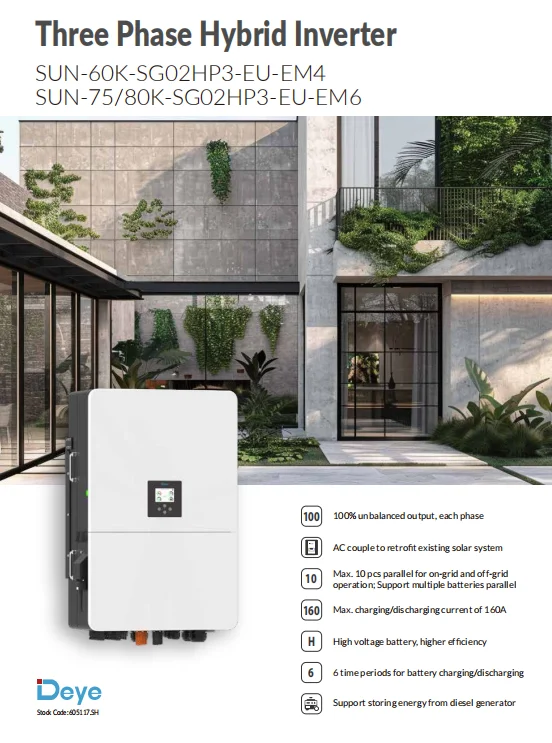

Model

SUN-60K-SG02HP3-EU-EM6

SUN-70K-SG02HP3-EU-EM6

SUN-75K-SG02HP3-EU-EM6

 SUN-80K-SG02HP3-EU-EM6

Battery Input Data

Battery Type

Lithium-ion Battery

Battery Voltage

160~1000V

Max Charging Current

80A+80A

Max Discharging Current

80A+80A

Charging Strategy

Self-adaption to BMS

Battery Input NO.

2

PV String Input Data

Max PV Input Power

96000W

11200W

120000W

128000W

Max Input Voltage

1000V

Start-up Voltage

180V

MPPT Voltage

150V~850V

Rated PV Input Voltage

650V

Max PV Imp

36+36+36+36+36+36A

Max PV Isc

54+54+54+54+54+54A

MPPT NO.&Strings per MPPT

6/2+2+2+2+2+2

AC Input/Output

AC Input/Output Power

60000W

70000W

75000W

80000W

Rated AC Input/Output Current

91A/87A

106.1A/101.5A

113.7A/108.7A

121.3A/115.9A

Max AC Input/Output Current

100A/95.7A

116.7A/111.6A

125A/119.6A

133.4A/127.6A

Peak Power off grid

1.5 times of rated power,10s

Output Voltage

230V/400V

Frequency

50HZ/60HZ

Grid Connection

3L+N+PE

Efficiency

Max. Efficiency

98.70%

Euro Efficiency

98.10%

MPPT Efficiency

more than 99%

Protection

Integrated

DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output
Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch,
Insulation Impedance Detection, Residual Current Detection

Interface

Communication Interface

RS485/RS232/CAN

Monitor Mode

GPRS/WIFI/Bluetooth/4G/LAN(optional)

General Data

Noise

≤65dB

Protection(IP) Rating

IP 65

Inverter Topology

Non-Isolated

Cabinet Size

606×927×314mm

Weight

105KG

Type of Cooling

Intelligent Air Cooling

Warranty

5 Years/10 Years
